Pitch 7.8mm Indoor Full Color LED Display RGB , Music Tour High Brightness LED Display SMD 3528

Onumen Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Pitch 7.8mm Indoor Full Color LED Display RGB , Music Tour High Brightness LED Display SMD 3528

Brand Name : Onumen
Model Number : F-P7.8
Certification : CE/ROHS/FCC/TUV
Place of Origin : China
MOQ : Negotiation
Price : Negotiation
Payment Terms : T/T 50% deposit,the balance should be paid before shipment
Supply Ability : 1000sqm per month
Delivery Time : 25 working days after received your payment
Packaging Details : Packed in flightcase
Pixel Pitch : 7.8mm
Module Size : 250mmx250mm
Pixel Density(pixels/m2) : 16384
Brightness(cd/m2) : 2000
Max.Power Consumption(W/m2) : 90
Waterproof Level : Indoor IP43/Indoor IP54
LED SPEC : SMD3528
Lifespan : ≥100000Hours
Working Voltage : DC24V
Drive Mode : Scan 1/16
Tube Chip Color : Full color
Contact Now

Pitch 7.8mm Indoor Full Color LED Display RGB , Music Tour High Brightness LED Display SMD 3528

Performance

Feature:

1. foldable ,flexible design
2. indoor and outdoor is avaliable
3. easy to install and maintain


Quick Detail:

1. Auto-fold ,rapid set-up

The screen can be lifted by electrical mache and set up time ,takes only minutes,85% time saving than

traditional led cabinet

2. 360 degree foldable

Foldable and flexible ,so high mobility,you can move it from place to place easily.

3. Ligthweight

85% transport cost saving

85% installation time saving

85% labor force saving

4. Customized sized and shapes

Panels can be made in customize sized and shapes to fit your exact projects needs

5. Weather resistant

Water Proof IP65 rating

6. High brightness

6000cd/s

7. Easy maintenance

With quick module release design ,it is very easy to replace a bad module during on-site


Specifications:

Model No.Slim 7
Pixel Pitch7.8mm
Module Size250x250mm
Module Resolution(pixels)32*32
Panel SizeMax can be 1000mm×8000mm, be customized as per customer's request.
Panel Resolution(pixels)128X1024
Pixel Configuration(RGB)1R1G1B
Pixel Density(pixels/m2)16384
Brightness(cd/m2)
Best Viewing Distance(m)>8m
Max.Power Consumption(W/m2)90
Waterproof LevelIndoor IP43/Indoor IP54
WavelengthR 625±5nm, G 525±5nm B 470±5nm
LED SPECSMD3528
Viewing Angle110°(H)/110°(V)
Operating Temperature–20~50°C
Video Frame Rate(Hz)30-120HZ
Display Refresh Rate(Hz)≥4000HZ
Grey Level(colors)16.7million
MTBF≥50000 hours
Lifespan≥100000Hours
Working VoltageDC24V
Drive ModeScan 1/16
Graphics CardDVI Graphics card
Video SignalRF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control SystemDbstar
SoftwareXmplayer 3.1
InstallationWall mount, hung


Product Show




Description:

1. Foldable LED module display is a new invention that breaks through various bottle-necks compared

with traditional LED display, it deserves the invention patent and Utility model patent internationally.

2. Foldable LED module display P7.8 is composed of many small modules 250mm*250mm which are

connected together by steel wire,the display can be folded with 360 degree between each module

3. Easy to maintain, High resolution, Good contract, Less Weight, easy to install. Widely used as the

information billboard in Airport, Railway station, and big shopping mall, concert and ect.

4. The brightness of indoor LED signs is adjustable so as to ensure different environment.

5. We make best design with high cost- efficiency according to the actual needs of our customers and we

can offer OEM service as well.

6. Lightweight,Ultra-Slim Design,360degree foldable

7. The Whole structure is plastice housing+PCBA, so as to lower the weight;85% weight saving than

tranditional Die Cast Aluminum Cabinet.

8. Max thickness is only 8-15mm,Ultra Slim body design


9. Different with the tranditional led screen, Our LED screen and Power supply unit are separate.With

such way, the heat from power supply won’t be transferred tothe LEDs, thus can help to expand the

LEDs’s life span. At the same time, no anycooling system needed, thus highly decrease the

engineering cost, avoid unnecessarywaste.

10. Power box can be put far away from the LED screen upon client’s request, so as toavoid the noise

from the fan from the power supply, which is paricularly suitable forfor the high-end occasions where

have high demands on the noise, such as the Museum, Concert hall,etc.

11. 100% fully test for Aging

12. The package is Flight case or wooden case

13 2 years’ warranty with free repair service

14 . 24/7 Hours online Remote Support

15. Solution and PCB design

16. Free factory training

18. Onsite installation instruction and regular inspection

Applications:

Business Organizationssupermarket, large-scale shopping malls, , chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations

Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices, hospital, schools;

Public Placessubway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms,
EntertainmentsMovie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course




Why Choose Us?
1) Innovative LED Screen Manufacturer for indoor&outdoor rental events and fixed projects.
2) Strong R&D team ensures products with nice features.
3) Onumen mainly focuses on achieving customers' innovative ideas by customizing lead screens.
4) Wide Applications: TV Station, studios, auto shows, concerts, clubs, discos, building facade,

exhibitions, celebrations, etc.

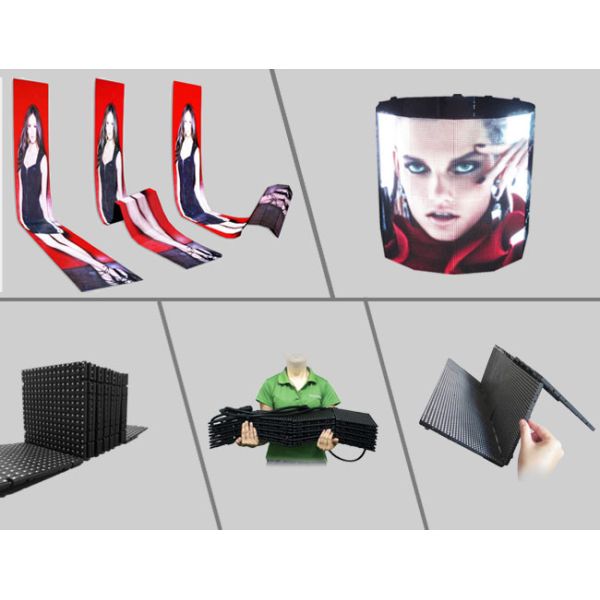

Foldable LED Screen Picture



Tag: flexible LED screen,foldable LED sceen,rental LED
