Hd Movies Video Wall Led Advertising Display Screen With High Refresh Rate

Brand Name : Onumen
Model Number : Slim 6
Certification : FCC.CE.TUV.ROHS
Place of Origin : SHENZHEN
MOQ : Negotiation
Price : Negotiation
Payment Terms : T/T, Western Union
Supply Ability : 3000//Square Meter/M
Delivery Time : 25 working days after received your payment
Packaging Details : wooden case or flight case as customer's request
Product Name : Slim 6
Size of Panel : 768x1728mm, can be customized
Application : indoor
Brightness : 4000nits
Module Size : 192mmx192mm
Warranty : 2 years
LED Chip : MY Brand
Usage : Indoor or Semi outdoor
Packing : Flightcase
Contact Now

Hd Movies Video Wall Led Advertising Display Screen With High Refresh Rate


Descriptions:


led advertising display screen need to move frequently, repeatedly demolished and installed, simply


understood as "elegant appearance, installation of lightweight portable, stable and reliable quality", so the


product shape design, structural design, material selection are stress, the main application In the


enterprise, conference systems, exhibitions, hotels, stage background, and other fields. Grease


optoelectronics for the leasing market to enhance the applicability of leasing products to optimize the


introduction of leasing products not only with ultra-thin light, fast disassembly, the use of flexible and


convenient features, but also according to different market needs to provide different configurations.


Foldable LED display panels featured by slim design, light weight, totem standard size, fast installation


that is very ideal for stores and all space open to public. In Particular for wall mounting (less than 15mm


depth). The pixel pitch goes from 3.9mm to 7.8mm to meet any technical and budgetary requirements in


indoor applications. With option of high brightness (4000nits) for visibility in direct sunlight behind shop


windows.



Competitive Advantage:

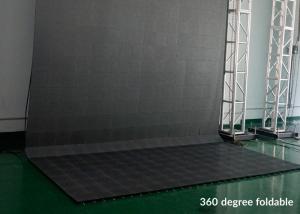

1. Foldable LED module display P6 is composed of many small modules 192mm*192mm which are


connected together by steel wire,the display can be folded with 360 degree between each module


2. Easy to maintain, High resolution, Good contract, Less Weight, easy to install.


3. Lightweight, 10kgs/sqm. Max thickness is only 8-15mm, Ultra-Slim Design,360 degree foldable


4. Different with the traditional led screen, Our LED screen and Power supply unit are separate.With such


way, the heat from power supply won’t be transferred to the LEDs, thus can help to expand the LEDs’s


life span. At the same time, no any cooling system needed, thus highly decrease the engineering cost,


avoid unnecessary waste.


5. With option of high brightness (4000nits) for visibility in direct sunlight behind shop windows.



Specifications:


Model No.Slim 6
Pixel Pitch6mm
Module Size192*192mm
Module Resolution(pixels)32*32
Panel Size768mm×2112mm, be customized as per customer's request. Max can be 768*6114mm
Panel Resolution(pixels)128*352
Pixel Configuration(RGB)1R1G1B
Pixel Density(pixels/m2)27778
Brightness(cd/m2)2000 / 4000
Best Viewing Distance(m)>6m
Max.Power Consumption(W/m2)300 / 620
Waterproof LevelIndoor IP43/Indoor IP54
WavelengthR 625±5nm, G 525±5nm B 470±5nm
LED SPECSMD3528
Viewing Angle110°(H)/110°(V)
Operating Temperature–20~50°C
Video Frame Rate(Hz)30-120HZ
Display Refresh Rate(Hz)≥4000HZ / 8000HZ
Grey Level(colors)16.7million
MTBF≥50000 hours
Lifespan≥100000Hours
Working VoltageDC24V
Drive ModeScan 1/16 or Scan 1/8
Graphics CardDVI Graphics card
Video SignalRF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control SystemDbstar
SoftwareXmplayer 3.1
InstallationWall mount, hung

All our products are in line with American and European standards with CE, RoHS, FCC, , Certificates.


And our products have passed a number of patents.


Product Tags:

folding led screen



folding led display


China Customized Inflatable Bumper Ball Game Bubble Adult Grass CE supplier

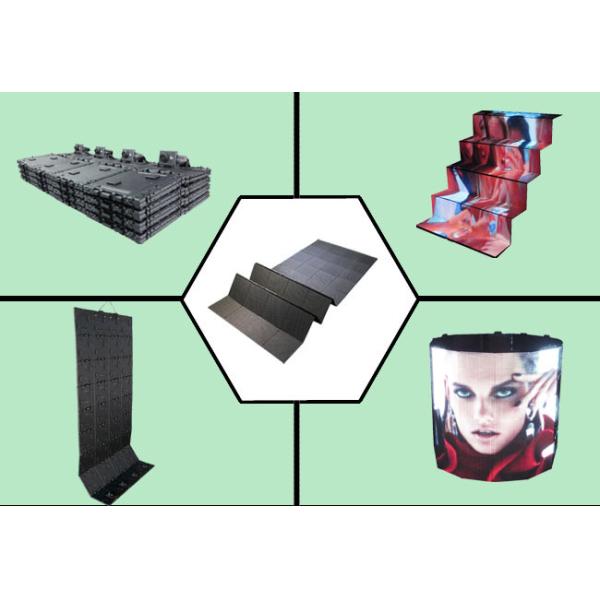

Hd Movies Video Wall Led Advertising Display Screen With High Refresh Rate Images
